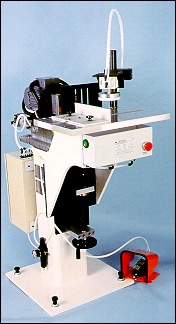

The Horizontal Boring Machine Has Been Designed, Engineered And Manufactured To The Highest Standard.
The Rigid Steel Fabricated Pedestal, Height Adjustable Table and Interchangeable Drilling Heads Make It Durable And Versatile.

Motor 1.1kW, 2850rpm, 3 phase [ alternative motors available on request ]
Maximum boring stroke 150mm [ adjustable ]
Table height adjustment 0 to 100mm
Maximum component height under clamp 170mm
Table size 500mm x 300mm
Maximum air consumption per cycle 1 ltr
Approx. nett weight 150Kg
Interchangeable drill head options 1 spindle with ½" capacity Jacob's chuck, 3 spindles, in-line at 32mm centres, [ specials available on request ]
Included Fully guarded
Dust extraction facility
CE compliant
Machine cycle Load component
Start motor [ runs continuously ]
Foot pedal to activate pneumatic clamp
Depress two button starter and hold to advance drills [ by releasing and re-activating two button start a manual pecking operation can be achieved if required ]
When adjustable stop reaches set depth drills automatically retract and component is unclamped

If you have a specific product, or a range of similar components which require drilling operations and you have significant quantity it may be cost effective to consider a special purpose drilling machine.

ADS has now designed and built a number of special purpose machines purely for customers applications to speed up production, reduce set up times and improve quality. This in turn leads to increased profitability.
